Products Description
Flat Plate Heat Exchanger is a high-efficiency heat exchange device assembled with stacked thin metal plates. Cold and hot fluids flow alternately between adjacent plates to realize rapid heat transfer via the plates. Compared with traditional shell-and-tube heat exchangers, it has a larger heat exchange area, smaller overall size and lighter weight under the same heat exchange capacity. Adopting a modular plate structure, users can increase or decrease the number of plates according to process requirements to flexibly adjust heat exchange capacity. Sealing gaskets isolate each plate to ensure complete separation and no mixing of the two fluids.Flat Plate Heat Exchanger is extensively used for heating, cooling and heat recovery processes in HVAC systems, industrial refrigeration, food processing, chemical production and other industries. It is an ideal energy-saving heat exchange device for modern industrial and civil fields.

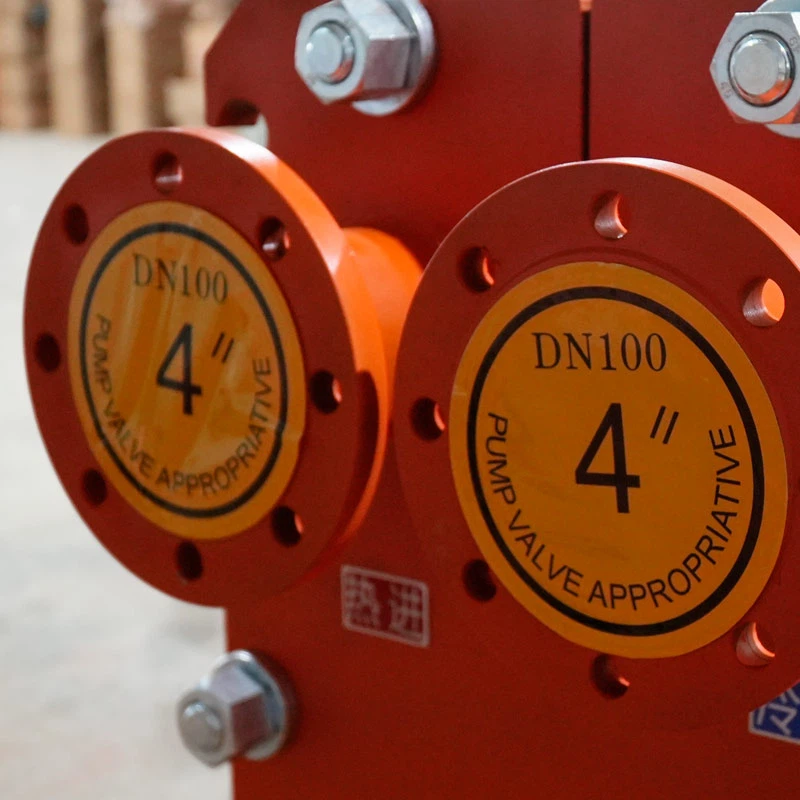

Product Image
Product Advantages
High Heat Exchange Efficiency
The corrugated plate design enhances fluid turbulence, raises the heat transfer coefficient, and delivers much higher heat exchange efficiency than traditional shell-and-tube heat exchangers.
Compact and Lightweight
It features small size and light weight under equivalent heat exchange capacity, covers less floor space and allows flexible installation, which is especially suitable for space-constrained sites.
Easy Cleaning and Maintenance
The plates of Flat Plate Heat Exchanger can be disassembled and cleaned piece by piece conveniently, which simplifies maintenance work, reduces downtime and cuts maintenance costs effectively.
Flexible Expansion Performance
With a modular plate structure, users can adjust the quantity of plates according to load changes to flexibly regulate heat exchange capacity without resource waste.
Processing Technology
Heat exchange plates are manufactured by high-precision stamping forming with uniform corrugations, which ensures even fluid distribution and stable and reliable heat exchange performance.
Plate assemblies are connected by vacuum brazing technology, featuring firm welding seams, excellent sealing performance, strong pressure resistance and long service life.
Flat Plate Heat Exchanger is available with various plate materials to meet the anti-corrosion and temperature resistance requirements of different working media.
High-performance elastic sealing gaskets are adopted, which are resistant to high temperature, high pressure and aging. They can strictly separate two fluids and completely avoid fluid leakage and mixing.
Detail Display
Functional Features
-
Heat Recovery
It enables efficient heat exchange between cold and hot fluids to realize waste heat recycling, which effectively lowers enterprise energy consumption and operating costs.
-
Stable and Durable
It has a simple structure with few vulnerable components, requiring minimal routine maintenance. It operates steadily and reliably, effectively reducing the whole life cycle cost.
-
Accurate Temperature Control
It has fast heat exchange response and sensitive and precise temperature adjustment capability, meeting strict temperature control standards of various processes and stabilizing finished product quality.
-
Low Resistance
The reasonably designed internal flow channels reduce fluid resistance and system pressure drop, cut pumping energy consumption and make the whole operation more energy-efficient and economical.
FAQ
Q: Are the heat exchange plates easy to get clogged?
A: The flow channels between plates are relatively wide with strong fluid turbulence, which effectively prevents scaling and clogging. We can also recommend suitable plate types for special working media.
Q: How frequently do sealing gaskets need replacement?
A: The replacement cycle depends on actual working conditions and medium properties. Sealing gaskets have a long service life under normal operating conditions, and we also supply independent gaskets for replacement.
Q: Is it allowed to replace only part of the plates?
A: Yes. The modular design supports separate replacement of damaged plates instead of replacing the whole equipment, which greatly saves maintenance costs and production downtime.
