Heat Exchanger
Hengshui Chiyue Technology Co., LTD., located in Jingxian, Hengshui City, Hebei Province, is a high-tech enterprise focusing on the research and development and production of plate heat exchanger gaskets. The park where the company is located has been rated as "Hebei Rubber and Plastic Industry Private Science and Technology Park", with perfect industrial supporting facilities and convenient logistics network. After more than 20 years of development, the company has become a well-known rubber gasket supplier at home and abroad, the products are exported to Europe and the United States market, well received by customers. The company has strong technical strength, has a number of professionals engaged in gasket R & D and production, and passed ISO9001:2015 quality management system certification, established a perfect quality control system.
Why Choose Us
High Quality
We produce rubber gaskets, covering a variety of specifications and models, can meet the needs of most heat exchanger brands at home and abroad. The rubber material independently developed by the company has excellent temperature resistance and medium resistance, and the product has high pressure and good market performance.
Professional Team
The company has strong technical strength, has a number of professionals engaged in gasket R & D and production, and passed ISO9001:2015 quality management system certification, established a perfect quality control system.
Production Market
Products are exported to Europe and the United States and other international markets, the annual output of more than 1 million, has been widely recognized by customers around the world. With high-quality products and services, the company has established a good brand image in the international market, and its performance has grown steadily.
Our Service
Professional marketing team in-depth understanding of customer needs, to provide customized solutions.
Strictly monitor the production process to ensure product quality.
-

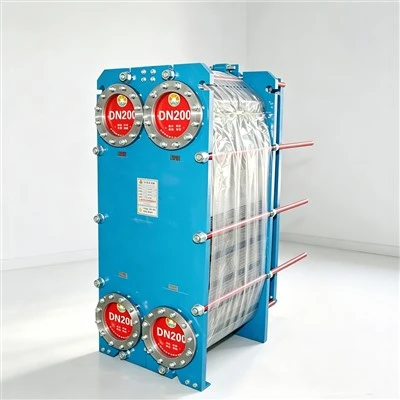

![Stainless Steel Plate Heat Exchanger]()
Stainless Steel Plate Heat ExchangerProducts Description Product Overview Stainless steel plate heat exchangers are high-efficiency heat transfer equipment assembled with stainless steel heat transfer plates, sealing gaskets, fixed...read more -
![Industrial Welded Spiral Plate Heat Exchanges]()
Industrial Welded Spiral Plate Heat ExchangesIndustrial Welded Spiral Plate Heat Exchanges can withstand high temperatures and high pressures and accommodate a wider range of operating conditions. The spiral counter-flow channels deliver...read more -
![Spiral Heat Exchangers For Industrial]()
Spiral Heat Exchangers For IndustrialDifferent from traditional shell-and-tube equipment, Spiral Heat Exchangers For Industrial deliver superior heat exchange performance with lower energy consumption under identical operating...read more -
![High-Quality Titanium Plate Heat Exchange]()
High-Quality Titanium Plate Heat ExchangeHigh-Quality Titanium Plate Heat Exchange features superior corrosion resistance. It can handle seawater and various corrosive chemical media to prevent rust, perforation and liquid leakage of...read more -
![Compact Plate Heat Exchanger]()
Compact Plate Heat ExchangerCompact Plate Heat Exchanger adopts an overall compact and lightweight structure with a small footprint, allowing easy installation even in narrow machine rooms. Internal corrugated plates agitate...read more -
![Energy-Saving Type Spiral Wound Heat Exchanger]()
Energy-Saving Type Spiral Wound Heat ExchangerThe core strengths of the Energy-Saving Type Spiral Wound Heat Exchanger lie in energy conservation and consumption reduction.read more
Its spiral flow channels deliver outstanding heat transfer... -
![Energy-Efficient Spiral Wound Tube Heat Exchanger]()
Energy-Efficient Spiral Wound Tube Heat ExchangerBoasting superior heat transfer performance, the Energy-Efficient Spiral Wound Tube Heat Exchanger generates turbulent spiral fluid flow for thorough thermal exchange, effectively reducing...read more -
![Steel Tubular Heat Exchanger]()
Steel Tubular Heat ExchangerSteel Tubular Heat Exchanger features mature material selection and robust construction with outstanding pressure and high-temperature resistance, compatible with heat exchange for water, oil...read more -
![Industrial Spiral Plate Heat Exchanger]()
Industrial Spiral Plate Heat ExchangerIndustrial Spiral Plate Heat Exchanger delivers high heat transfer efficiency and features a compact structure. Its unique spiral flow channel induces strong fluid turbulence, which greatly...read more -
![Flat Plate Heat Exchanger]()
Flat Plate Heat ExchangerFlat Plate Heat Exchanger is a high-efficiency and energy-saving heat exchange device. It is assembled by stacking multiple metal heat exchange plates, and heat transfer between cold and hot...read more -
![Semi Welded Plate Heat Exchanger]()
Semi Welded Plate Heat ExchangerThe semi-welded plate heat exchanger is a hybrid plate heat exchange device. Two corrugated plates are paired together, with their edges laser-welded to form sealed flow channels for the passage...read more -
![Tubular Stainless Steel Heat Exchanger]()
Tubular Stainless Steel Heat ExchangerAs one of the most widely used wall-type heat transfer devices in industrial applications, the tubular stainless steel heat exchanger delivers stable structural performance, superior heat transfer...read more
Heat exchangers are devices that are used to transfer thermal energy from one fluid to another without mixing the two fluids. The fluids are usually separated by a solid wall (with high thermal conductivity) to prevent mixing or they may be in direct contact.
The classic example of a heat exchanger is found in an internal combustion engine in which an engine coolant flows through radiator coils and air flows past the coils, which cools the coolant and heats the incoming air. In power engineering, common applications of heat exchangers include steam generators, fan coolers, cooling water heat exchangers, and condensers. For example, steam generator is used to convert feedwater into steam from heat produced in a nuclear reactor core.
Double pipe heat exchangers. Double pipe heat exchangers are cheap for both design and maintenance, making them a good choice for small industries. In these exchangers one fluid flows inside the tube and the other fluid flows on the outside. Although they are simple and cheap, their low efficiency coupled with the high space occupied in large scales, has led modern industries to use more efficient heat exchangers like shell and tube.
Shell and tube heat exchangers. Shell and tube heat exchangers in their various construction modifications are probably the most widespread and commonly used basic heat exchanger configuration in industry. Shell-and-tube heat exchangers are further classified according to the number of shell and tube passes involved. Shell and tube heat exchangers are typically used for high-pressure applications (with pressures greater than 30 bar and temperatures greater than 260 °C). This is because the shell and tube heat exchangers can withstand high pressures due to their shape. In this type of heat exchanger, a number of small bore pipes are fitted between two tube plates and primary fluid flows through these tubes.
Plate heat exchangers. A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. This arrangement is popular with heat exchangers using air or gas as well as lower velocity fluid flow. The classic example of a heat exchanger is found in an internal combustion engine in which an engine coolant flows through radiator coils and air flows past the coils, which cools the coolant and heats the incoming air. When compared to shell and tube exchangers, the stacked-plate arrangement typically has lower volume and cost. Another difference between the two is that plate exchangers typically serve low to medium pressure fluids, compared to medium and high pressures of shell and tube.
Heat Exchanger Material Selection Based on Common Criteria
Selecting the best material for heat exchanger tubes is a critical decision that depends on several factors, including the operating conditions, fluid properties, and the specific requirements of the application. The choice of material significantly influences the heat exchanger's performance, durability, and overall efficiency. Several materials are commonly used for heat exchanger tubes, each with its unique set of advantages and considerations.
Stainless Steel
Stainless steel is a popular choice for heat exchanger tubes due to its excellent corrosion resistance and durability. It is particularly effective in environments where exposure to corrosive substances is a concern. The most common stainless steel alloys used for heat exchangers include 304 and 316 grades. These alloys offer good mechanical properties, high corrosion resistance, and the ability to withstand a wide range of temperatures. Stainless steel tubes are widely used in applications such as chemical processing, petrochemical, and food processing industries.
Copper and Copper Alloys
Copper and its alloys, such as admiralty brass and aluminum brass, are known for their exceptional thermal conductivity. Copper tubes are efficient in transferring heat and are often used in applications where high thermal performance is crucial, such as HVAC systems and refrigeration. However, copper is susceptible to corrosion in certain environments, and the cost can be a factor in some applications.
Carbon Steel
Carbon steel is a robust and cost-effective material for heat exchanger tubes. It is known for its strength and ability to withstand high temperatures and pressures. Carbon steel tubes are commonly used in industrial applications, such as power plants and chemical processing, where the emphasis is on strength and durability. However, carbon steel is more susceptible to corrosion compared to stainless steel, and corrosion-resistant coatings may be applied to enhance longevity.
Titanium
Titanium offers a unique combination of high strength, low density, and excellent corrosion resistance, making it suitable for heat exchanger tubes in demanding environments. It is particularly favored in applications where exposure to seawater is a concern, such as in marine and offshore industries. While titanium is more expensive than some other materials, its performance in corrosive environments justifies its use in critical applications.
Nickel Alloys
Nickel alloys, including Inconel and Monel, are known for their exceptional corrosion resistance, high-temperature strength, and resistance to thermal expansion. These alloys are commonly used in heat exchanger tubes for applications involving aggressive chemical processes and high-temperature environments. Nickel alloys are particularly suitable for industries such as petrochemical, aerospace, and pharmaceuticals.
Aluminum
Aluminum is valued for its lightweight nature and good thermal conductivity. Aluminum tubes are often used in applications where weight is a critical factor, such as in automotive heat exchangers and air conditioning systems. While aluminum is less robust than some other materials, its advantageous combination of properties makes it a suitable choice for specific applications.
Duplex Stainless Steel
Duplex stainless steel, characterized by a dual-phase microstructure of austenitic and ferritic phases, offers a balance of strength and corrosion resistance. This makes it suitable for heat exchanger tubes in applications involving corrosive fluids and high temperatures. Duplex stainless steel is often chosen for offshore and marine applications, as well as in the chemical and petrochemical industries.
Ceramic Tubes
In extremely high-temperature applications, ceramic tubes may be considered. Ceramics offer excellent resistance to heat and can withstand harsh operating conditions. However, their brittleness and potential challenges in fabrication make them less common in conventional heat exchanger designs.
Applications and Use of Heat Exchangers
While heat-exchanger are instrumental in a variety of industries. Like in power plants, HVAC systems, chemical
Power plants
In power plants, for example, heat exchanger are used to transfer heat from the hot exhaust gas to a fluid medium (usually water), which then becomes steam and is used to drive turbines.
01
Hvac systems
The heat exchangers transfer heat from the indoor air to the outdoor air or vice versa, ensuring a comfortable indoor temperature.
02
Chemical plants
Indeed, chemical plants employ heat exchanger to regulate the temperature of chemical reactions, requiring precise temperature control.
03
Other industries
The use of heat-exchanger extends to many other sectors. The food and beverage industry employs them for pasteurizing milk and juice, the oil and gas industry uses them to cool and condense hydrocarbon fluids, and the automotive industry relies on them to cool engine coolant and oil.
04
All types of heat exchangers operate using the same thermodynamic principles and mechanism of heat transfer. These principles basically describe how thermal energy is transferred at the macroscopic level. Three bodies are interacting in a heat exchanger system: the hot fluid, the cold fluid, and the wall separating the two fluids. Energy flows from the hot fluid, through the wall or barrier, and then into the cold fluid. The following are some thermodynamic principles that are useful to understand how heat exchangers work:
First Law of Thermodynamics: The first law is referred to as the Law of Conservation of Energy, which states that energy (in the form of heat and work) can neither be created nor destroyed. It can only be transferred to another system or converted to one form or another. In heat exchangers, this statement is translated by the heat balance equation written as:
Assuming it operates in a steady-state flow, that means that the thermal properties remain constant at all points as time changes, and the system is adiabatic (perfectly insulated), the heat balance equation simplifies to Heat In = Heat Out. This is one of the most basic equations which is used in the design and operation of heat exchangers.
Second Law of Thermodynamics: The second law introduces the concept of entropy, the degree of disorderliness and randomness of a system. The entropy of the universe is constantly increasing and can never decrease. It tells us the direction of the flow of energy between two interacting systems in which the highest entropy is generated. Heat is always transferred from a body with higher temperatures to lower temperatures which is the natural tendency of all systems. For heat exchangers, the cold fluid gains heat and increases its temperature, and the hot fluid loses heat and decreases its temperature.
Heat Exchanger Components and Their Functions
A heat exchanger is a device used for the transfer of thermal energy, and its components are crucial in influencing the performance, safety, and lifespan of the heat exchanger. The main components and their functions are as follows
Baffle Plate
Located inside the shell, the baffle plate guides the flow of the medium, increasing its velocity and turbulence, thereby enhancing heat transfer efficiency.
Corrugated Tube
A core component of the heat exchanger, the corrugated tube is primarily used to increase the heat transfer area, thus improving heat transfer efficiency. Its special corrugated shape also enhances flexibility and pressure resistance, allowing the heat exchanger to operate effectively under high pressure.
Tube Sheet
Positioned inside the heat exchangers shell, the tube sheet fixes the pipes, preventing displacement, vibration, and wear. It also ensures the flow direction and velocity of the medium, enhancing heat transfer efficiency.
Thermal Insulation Material
This material is employed to reduce energy loss during the heat transfer process, preventing thermal energy leakage and enhancing the heat efficiency of the heat exchanger. Common thermal insulation materials include glass wool, rock wool, and aluminum silicate fiber.
Pipe Clamp
Used to secure pipelines, the pipe clamp prevents pipe loosening or detachment, ensuring the normal flow of the medium. Additionally, it reduces the thermal expansion and contraction of the pipes, ensuring the safety and stability of the pipelines.
Leak Detector
The leak detector is primarily used to monitor whether leakage occurs in the heat exchanger. It promptly alarms in the event of a leak, ensuring the safety and reliability of the equipment.
How to Maintain Heat Exchangers
Importance of Cleaning Heat Exchangers
Heat exchangers play a crucial role in various industries, including HVAC systems, power plants, and manufacturing processes. They are responsible for transferring heat from one fluid to another, ensuring efficient operation and maintaining optimal performance. However, over time, heat exchangers can accumulate dirt, debris, and other contaminants, leading to reduced efficiency, increased energy consumption, and potential system failures.
Regular cleaning of heat exchangers is essential to maintain their functionality and prolong their lifespan. By removing the buildup of dirt and contaminants, the heat exchanger can operate at its maximum efficiency, resulting in cost savings and improved performance. Neglecting to clean heat exchangers can lead to decreased heat transfer efficiency, increased pressure drop, and even complete system shutdowns.
Overview of the Step-by-Step Guide
To help you understand the process of cleaning heat exchangers, this step-by-step guide will provide you with the necessary information and instructions. From preparing for the cleaning process to the actual cleaning techniques, this guide will ensure that you have a comprehensive understanding of how to properly clean your heat exchanger.
By following this guide, you will be able to effectively clean your heat exchanger, remove any accumulated debris, and restore its efficiency. This will not only save you money on energy costs but also prevent potential system failures and ensure the longevity of your heat exchanger.
Understanding Heat Exchangers
Heat exchangers are crucial components in various industrial processes and systems. They play a vital role in transferring heat from one medium to another, ensuring efficient operation and preventing overheating. Understanding the basics of heat exchangers is essential for maintaining their optimal performance and prolonging their lifespan.
Our Factory
Our factory covers an extensive area and is equipped with advanced production equipment, including 14 flat vulcanizing machines, and the maximum heating plate size can be adapted to various production requirements. The company has more than 750 sets of molds of various models, which can meet the specifications of most heat exchanger brands in the market.
Our Certificate
FAQ
Q: What is heat exchanger and its function?
Q: Is a heat exchanger the same as a furnace?
Q: Why heat exchanger is used in HVAC?
Q: What is the principle of heat exchanger?
Q: How does a heat exchanger work for dummies?
Q: Where is the heat exchanger located?
Q: What does a heat exchanger do in a house?
Q: Why do you need a heat exchanger?
Q: How many heat exchangers are in a furnace?
Q: Should I replace furnace heat exchanger?
Q: Do I need a heat exchanger in my house?
Q: Can a heat exchanger be repaired?
Q: What does a heat exchanger look like?
Q: What happens if a heat exchanger is cracked?
As one of the most professional heat exchanger manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy cheap heat exchanger for sale here and get quotation from our factory. Contact us for customized service.
