Products Description
Industrial Spiral Plate Heat Exchanger is manufactured by rolling two parallel metal plates to form spiral flow channels. Hot and cold fluids flow countercurrently inside the channels to achieve efficient heat exchange.This product features a compact structure, high heat transfer efficiency, good anti-scaling performance and strong self-cleaning capability. It is particularly suitable for heat exchange applications involving solid particles, high-viscosity media and fluids prone to scaling. Materials can be selected flexibly according to medium characteristics. With excellent sealing performance and stable operation, it is widely applied in chemical, metallurgical, food, pharmaceutical and many other industrial fields. It serves as a premium heat exchange solution for enterprises to save energy, reduce consumption and improve process efficiency.

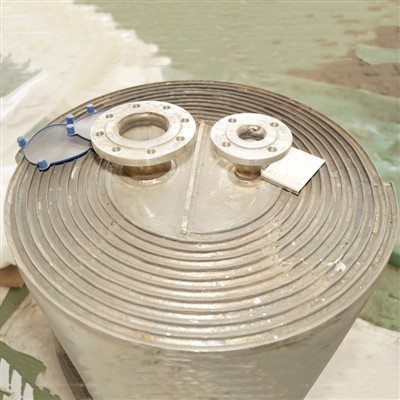

Product Image
Process Technology
Spiral Rolling
Specialized machinery is used to precisely roll metal plates into spiral channels, ensuring stable and consistent heat transfer performance.
Full Welding Process
The entire unit adopts a fully welded structure with no gaskets, eliminating potential leakage hazards and providing outstanding pressure resistance and sealing performance.
Double-sided Detachable Design
The equipment is designed with detachable ends on both sides for easy internal cleaning and inspection, which greatly reduces long-term maintenance difficulties.
Optional Materials
Carbon steel, stainless steel, titanium and other materials are available based on the corrosive nature of the process media to meet the requirements of diverse working conditions.
Product Advantages
High-efficiency Heat Transfer
The spiral channel design enables full fluid turbulence and delivers a high heat transfer coefficient. Its heat exchange capacity per unit volume is far greater than that of traditional shell-and-tube heat exchangers.
Strong Adaptability
Industrial Spiral Plate Heat Exchanger can process complex media such as particle-laden and high-viscosity fluids, and performs reliably under harsh working conditions that ordinary heat exchangers cannot handle.
Reliable Sealing
The fully welded structure uses no gaskets, completely eliminating leakage risks. It is applicable to heat exchange processes involving toxic, hazardous or valuable media.
Anti-scaling Performance
Fluids rotate at high velocity within the spiral channels and create a continuous scouring effect, which effectively reduces dirt accumulation and extends maintenance intervals.
Detail Display
Functional Features
Counter-flow Heat Exchange:Hot and cold fluids flow countercurrently in the spiral channels, maximizing temperature difference utilization. Its heat transfer efficiency is significantly higher than that of conventional heat exchange equipment.
Self-cleaning Scouring:High-speed fluid rotation generates centrifugal scouring force to clean the inner channel walls automatically. This slows down scaling and extends the equipment service life.
Pressure & Temperature Resistance:The fully welded structure provides robust pressure bearing capacity. The unit can operate continuously and stably at elevated temperatures and pressures with a high safety factor.
Flexible Combination:Individual units can be connected in series or parallel flexibly to adjust the overall processing capacity based on actual heat exchange requirements, delivering excellent expandability.
Product Precautions
Medium Matching
Provide accurate information on medium composition and working parameters before equipment selection, so as to prevent corrosion or damage caused by material incompatibility.
Avoid Impact
Sudden start-up, shutdown or rapid switching of operating conditions is prohibited. Water hammer or thermal shock may cause irreversible damage to the spiral flow channels.
Anti-freeze Protection
In cold regions, drain all residual water from the Industrial Spiral Plate Heat Exchanger or add antifreeze when the unit is out of service to prevent cracking and ensure normal operation for subsequent use.
